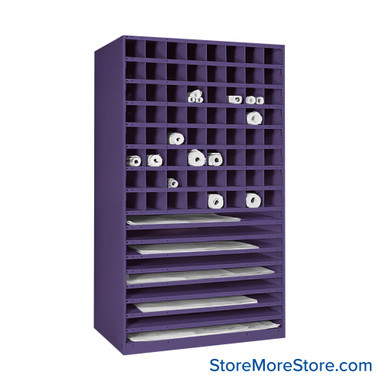

Our blueprint storage rack is a flexible solution for storing and preserving flat architectural drawings and rolled blueprints. The flat shelves are ideal for active blueprints, keeping them neatly stored without curling. Roll them up when the plans become inactive and tuck them away in a convenient cubby hole, ensuring your blueprints are always well-organized and accessible.
Key Features:
- Core Material: Steel
- Doors: Yes
- Finish: Burgundy; Canvas; Cardinal Red; Champagne; Gray Ash; Gray; Hunter Green; January White; Jet Black; Lake Blue; Light Putty; Mandarin Orange; Marine Blue; Nordic Purple; Patriot Red; Reflex Blue; Regal Blue; Sagebrush Yellow; Shamrock; Slate Blue; Spray Green; Sunburst; Tawny Tan; Turquoise Teal
Additional Features:
- The unit comes with four posts and 24-gauge side panels.
- Backs are made of 24-gauge steel.
- Shelves clip into the posts and are adjustable on 1.5'' increments.
- Shelves are made of 18-gauge steel and rated to hold 475 lbs. each.
- Shelves are punched for divider adjustment on 1.5'' increments.
- Adjustable dividers are made of 20-gauge steel with rounded front flanges.
- Front base strips are made of 18-gauge steel.
- Hinged door frames are 16-gauge steel.
- Doors are made of 20-gauge steel and reinforced to prevent warping.
- Doors have three 5-knuckle hinges and a chrome-plated key handle.
The Blueprint Storage Rack offers efficient, space-saving storage for blueprints, schematics, artwork, and other large-format materials. Perfect for offices, design studios, and job sites, these plan storage cabinets keep important documents organized, protected, and easy to retrieve.
Legacy Part Number: SMS-65-1H6659K-SD-736
