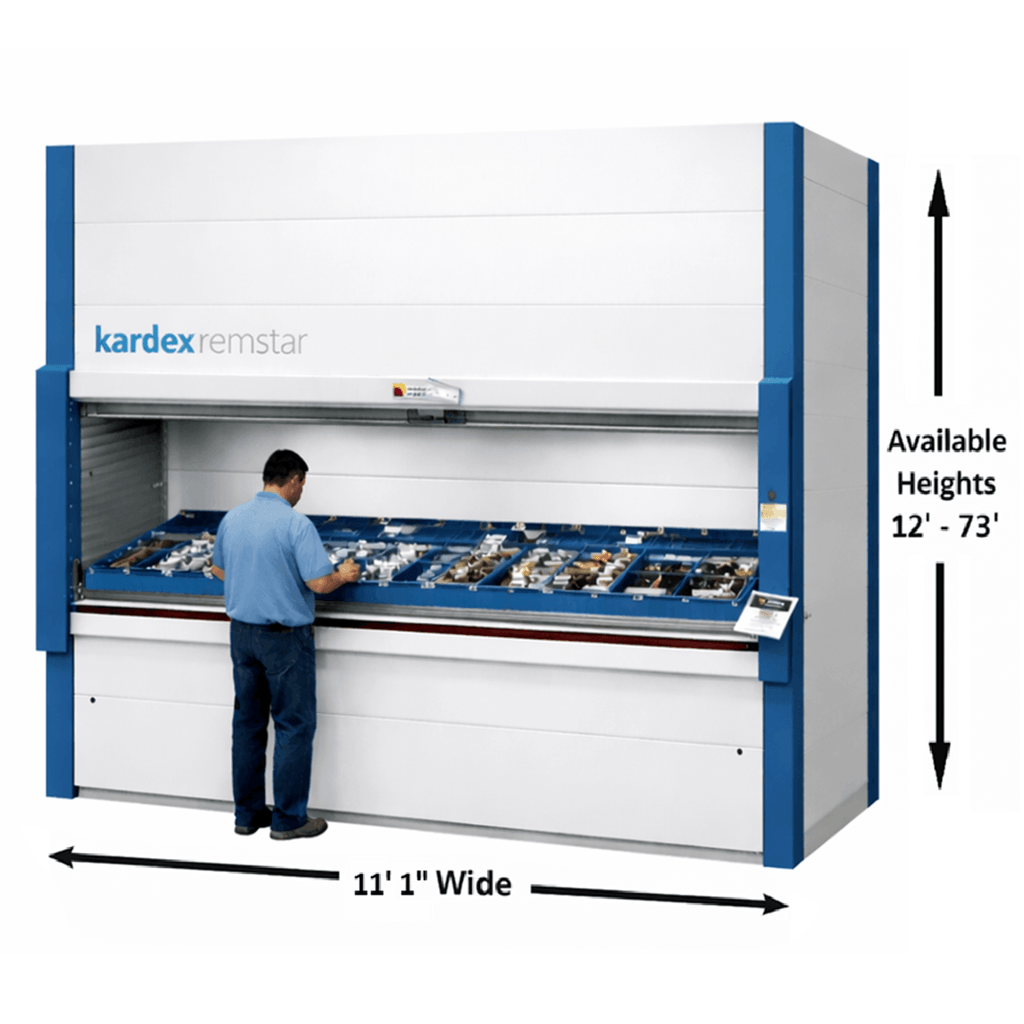

Kardex Remstar Shuttle XLD 500 Vertical Lift Module (VLM) 11' 1'' W x 10' 1'' D x 22' 2'' H Standard Duty Automated Storage and RetrievalSystem (ASRS)

Prices Starting at $196,738.90, Call for Quote

The Kardex Shuttle XLD 500 Vertical Lift Module with 120 x 34 light duty storage trays is an automated vertical storage system designed to store lighter parts, supplies, and inventory in a compact footprint while bringing items directly to the operator. This enclosed vertical lift module improves storage density, reduces walking time, and helps organize inventory for faster picking and replenishment.

This 120 x 34 Kardex Shuttle configuration uses 104 light duty storage trays in a tall high-density storage unit built for goods-to-person retrieval. It is a strong fit for facilities looking to improve floor space usage, inventory control, and picking efficiency while storing lighter products in a secure automated system.

Key Features:

Tray Capacity: Light duty storage tray configuration for lighter stored items and supplies
Tray Count: 104 storage trays
Tray Size: 120.08 inch tray width x 34 inch tray depth
Vertical Storage Design: High-density enclosed storage helps maximize overhead space
Automated Retrieval: Goods-to-person tray delivery improves picking speed and accuracy
Secure Access: Enclosed unit design helps protect stored inventory and control access
Safety Features: Automatic shutter door and full light curtain safety grid
Application Use: Built for lighter inventory in manufacturing, industrial, healthcare, and parts storage environments

This Kardex Shuttle XLD 500 light duty storage tray unit is well suited for parts rooms, medical storage, industrial supply storage, maintenance departments, and other operations that need organized automated vertical storage for lighter inventory.

Call us at (866) 285-8646 or email us through our contact page to request a quote. Our team can help you review layout needs, available options, and the right configuration for your project.

SKU:: SMS-806-V159-XLD-500-120x34-Light
