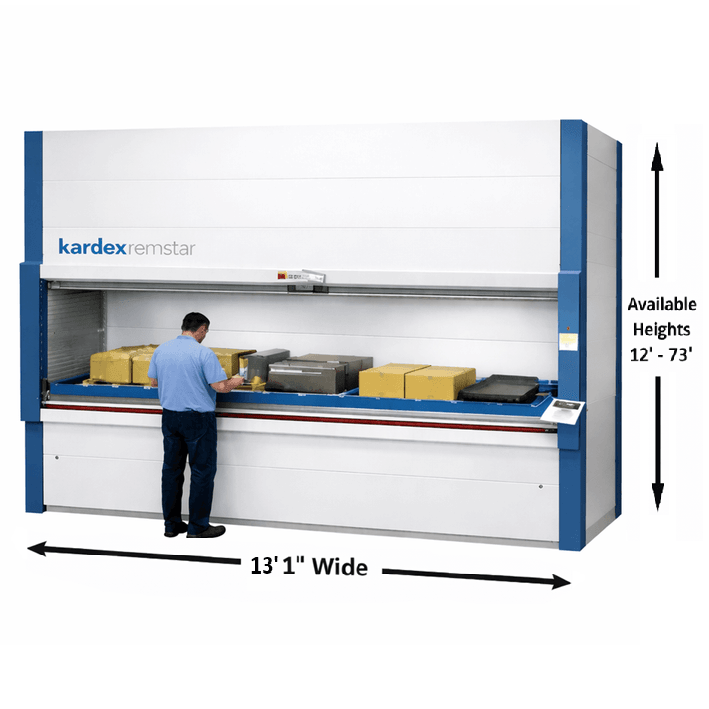

Kardex Remstar Shuttle XLD 500 Vertical Lift Module (VLM) 13' 1'' W x 10' 1'' D x 22' 2'' H Medium Duty Automated Storage and RetrievalSystem (ASRS)

Prices Starting at $212,326.85, Call for Quote

The Kardex Shuttle XLD 500 Vertical Lift Module with 144 x 34 medium duty storage trays is an automated storage system built to handle medium weight inventory in a secure enclosed vertical footprint. This vertical lift module delivers trays directly to the operator, helping reduce search time, improve picking accuracy, and maximize the use of overhead storage space.

This 144 x 34 Kardex Shuttle unit includes medium duty storage trays and is designed for operations that need more tray load capability than a light duty configuration while keeping the same wide high-density automated storage format. It is a practical solution for storing parts, components, tools, and packaged inventory with better organization and controlled access.

Key Features:

Tray Capacity: Medium duty storage tray configuration for moderate weight parts and inventory
Wide Tray Format: 144 x 34 tray configuration supports larger storage layouts within the unit
Vertical Storage Design: High-density automated storage helps increase storage capacity in less floor space
Automated Retrieval: Goods-to-person delivery supports faster and more accurate picking
Secure Access: Enclosed unit design helps keep stored items organized and contained
Organized Inventory: Helps improve storage control for parts, supplies, and packaged products
Safety Features: Automatic shutter door and full light curtain safety grid
Application Use: Designed for parts storage, industrial supplies, healthcare inventory, and maintenance operations

This Kardex Shuttle XLD 500 medium duty storage tray unit is ideal for manufacturing, service parts storage, industrial supply rooms, healthcare inventory, and other applications that need organized automated storage for medium weight products in a wider tray layout.

Call us at (866) 285-8646 or email us through our contact page to request a quote. Our team can help you review layout needs, available options, and the right configuration for your project.

SKU:: SMS-806-V159-XLD-500-144x34-Medium
