Kardex Remstar Shuttle XLD 700 Vertical Lift Module (VLM) 9' 1'' W x 10' 3'' D x 22' 2'' H Standard Duty Automated Storage and RetrievalSystem (ASRS)

Prices Starting at $183,179.18, Call for Quote

The Kardex Shuttle XLD 700 Vertical Lift Module with 96 x 34 light duty storage trays is an automated vertical storage system designed for lighter parts, supplies, and inventory that still require a higher-capacity vertical lift platform. This enclosed vertical lift module stores trays inside the machine and brings them directly to the operator, helping improve storage density, reduce walking time, and organize inventory for faster picking and replenishment.

This 96 x 34 Kardex Shuttle XLD 700 configuration uses 96 light duty storage trays in a high-density goods-to-person storage system built for efficient retrieval and controlled inventory access. It is a strong fit for operations that need the larger load capability of the XLD 700 platform while storing lighter products in manufacturing, industrial, healthcare, and parts storage environments.

Key Features:

Tray Capacity: Light duty storage tray configuration for lighter stored items and supplies
Tray Count: 96 storage trays
Tray Size: 96.46 inch tray width x 34 inch tray depth
XLD 700 Platform: Built on the higher-capacity XLD 700 vertical lift module platform
Vertical Storage Design: High-density enclosed storage helps maximize overhead space
Automated Retrieval: Goods-to-person tray delivery improves picking speed and accuracy
Secure Access: Enclosed unit design helps protect stored inventory and control access
Safety Features: Automatic shutter door and full light curtain safety grid

This Kardex Shuttle XLD 700 light duty storage tray unit is well suited for parts rooms, medical storage, industrial supply storage, maintenance departments, and other operations that need organized automated vertical storage on a higher-capacity machine platform.

Call us at (866) 285-8646 or email us through our contact page to request a quote. Our team can help you review layout needs, available options, and the right configuration for your project.

SKU:: SMS-806-V159-XLD-700-96x34-Light

Select Options 1 to 5

Start Over

Current Stock:

Product Information

Specification Table

Please configure your product to view product specifications.

Support Documents

Architectural Drawings

View Architectural Revit Models

Videos

Freight

Compare with Similar Items

Related Products

[{"id":457680,"name":"Documentation","value":"Specifications [] https://products.storemorestore.com/hubfs/StoreMoreStore/Kardex-Vertical-Lift-Module/VLM-Option-14-96x34-Strong-XLD-700-Specification-Sheet.pdf"},{"id":457681,"name":"Revit","value":"https://fetchbim.com/product/44/ssg-vertical-lift-shuttle-pcs"},{"id":457682,"name":"Documentation","value":"Technical Drawing [] https://products.storemorestore.com/hubfs/StoreMoreStore/Kardex-Vertical-Lift-Module/VLM-Option-14-96x34-Strong-XLD-700-Unit-Drawing-and-Color.pdf"},{"id":457684,"name":"Product Width","value":"109.45''"},{"id":457685,"name":"Product Depth","value":"122.99''"},{"id":457686,"name":"Product Height","value":"265.75''"},{"id":457687,"name":"Material","value":"Steel"},{"id":457688,"name":"Core Material","value":"Galvanized Steel"},{"id":457689,"name":"Color/Finish","value":"Light Gray"},{"id":457690,"name":"Storage Type","value":"Vertical Lift Module"},{"id":457691,"name":"Number of Storage Trays","value":"96"},{"id":457692,"name":"Tray Size","value":"96.46 in W x 34 in D"},{"id":457693,"name":"Maximum Load per Tray","value":"1102 lbs"},{"id":457694,"name":"Minimum Tray Spacing","value":"3.94 in"},{"id":457695,"name":"Maximum Product Height","value":"28.6 in"},{"id":457696,"name":"Storage Locations Possible","value":"396"},{"id":457697,"name":"Storage Surface Area","value":"2186.90 sq ft"},{"id":457730,"name":"Quote","value":"Disabled"}]

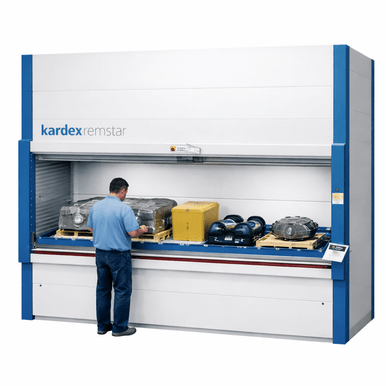

Kardex Remstar Shuttle XLD 700 Vertical Lift Module (VLM) 9' 1'' W x 10' 3'' D x 22' 2'' H Heavy Duty Automated Storage and R…
