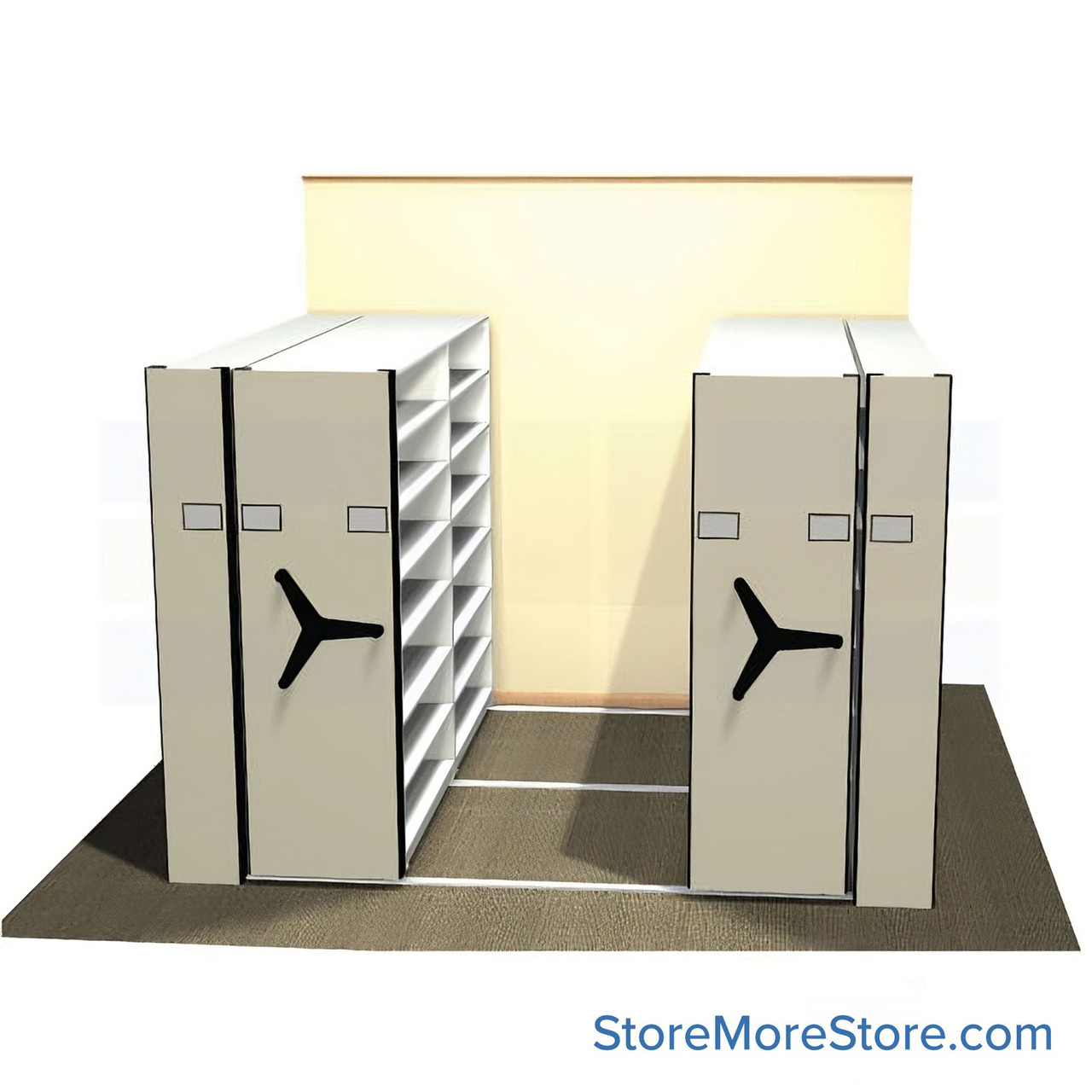

High-density shelving systems revolutionize storage space efficiency by replacing static aisles with movable aisles. These mobile shelving systems can cut your storage space in half or double your storage in the same floor space as traditional fixed aisle shelving systems.

Ideal for storing supplies, equipment, gear, parts, file folders, and record boxes, these systems offer a dynamic and space-saving solution for any organization. Whether in an office or industrial environment, high-density shelving maximizes your storage area and ensures that your materials are readily at hand when needed. For an exact quote, please contact us.

Key Features:

• Core Material: Steel
• System Width: 118''
• Shelving Width: 96''
• Shelving Depth: Letter (12'')
• Finish: Black; Blue Gray; Cottonwood; Designer Gray; Frost; Furniture White; Light Tone; Tan; Warm Brown; Whisper

Additional Features:

• The high-density storage system includes tracks, carriages, and shelving for a complete storage system. The system has anti-tip safety mechanisms that can withstand the effects of earthquake movement required by applicable building codes.
• Tracks are ADA-approved, leveled, and grouted with a non-shrinking hydraulic cement compound.
• Carriages support 750 lbs per lineal foot of carriage length.
• Carriages are made of formed structural steel.
• Carriage wheels are precision machined 3'' in diameter. Wheel bearings are permanently lubricated.
• Wheels are equipped with clutch brake assemblies to prevent free-drifting of carriages and meet L/480 deflection criteria.
• Three-spoke control handles are located 40'' from the base. Handles rotate and move the carriages using a chain drive mechanism.
• Chain tension mechanisms are adjustable from the handle hub without removing the end panel.
• Handles include a push-pin carriage lock with a color-coded visual indicator to verify that carriages are locked or unlocked.
• Handles move at least 4,000 lbs with one pound of force on the handle.
• Shelving uprights recess into the carriages for additional safety.
• Vertical side panels (uprights) are closed metal panels at row ends are closed type made of 18-gauge posts with 24-gauge panels.
• All other uprights are open type.
• Shelves on fixed rows are single-entry and include backstops.
• Shelves on movable carriages are dual-entry with centerstops.
• Dual-entry shelves come with either one or two shelf reinforcements based on the size of the shelf.
• Top shelves serve as dust covers.
• Shelves are adjustable vertically on 1.5'' increments.
• File dividers (if required) are sold separately.
• Finish floor covering materials and installation are not included.
• Floor levelness should meet the standard General Contractor code of .125'' over a 10' span.

The High Density Shelving simplifies office organization by neatly storing paper documents, files, and supplies. Used in both public and private sectors, this shelving system maximizes available space and supports a tidy, professional work environment.

Legacy Part Number: SMS-72-SSG-EML9672L
