SKU: SMS-868-V167-40316
Price
BBB Accredited Business: A+ | Secure Checkout
Estimated to ship in 1 to 4 weeks. Call 866-285-8646 or email [email protected] for current lead time.
*Add to cart to view available shipping options and costs.
Questions? We're here to help. Call 866-285-8646 or email us.
| Tank Capacity | 5,500 gallons |
|---|---|
| Tank Style | Cone Bottom Tank |
| Tank Dimensions | 119'' Dia x 148'' H |
| Warranty | Manufacturer's Limited 3-Year Warranty |
| Liquid Access | 1 Outlet , 1 Manway / Lid |
| Weight / Ship Class | 1355 lbs. / Ship Class 300 |
| Ships From | MN, OH, OK |
| Outlet / Drain 1 | 3" PP Female NPT Bulkhead Fitting |
| Manway / Lid | 16" Threaded Vented Manway |
| Additional Fittings | Call for details |
| UV Stabilized | Yes |
| Translucent | Yes |
| Environment | Above Ground |
| Gallon Indicators | Yes |

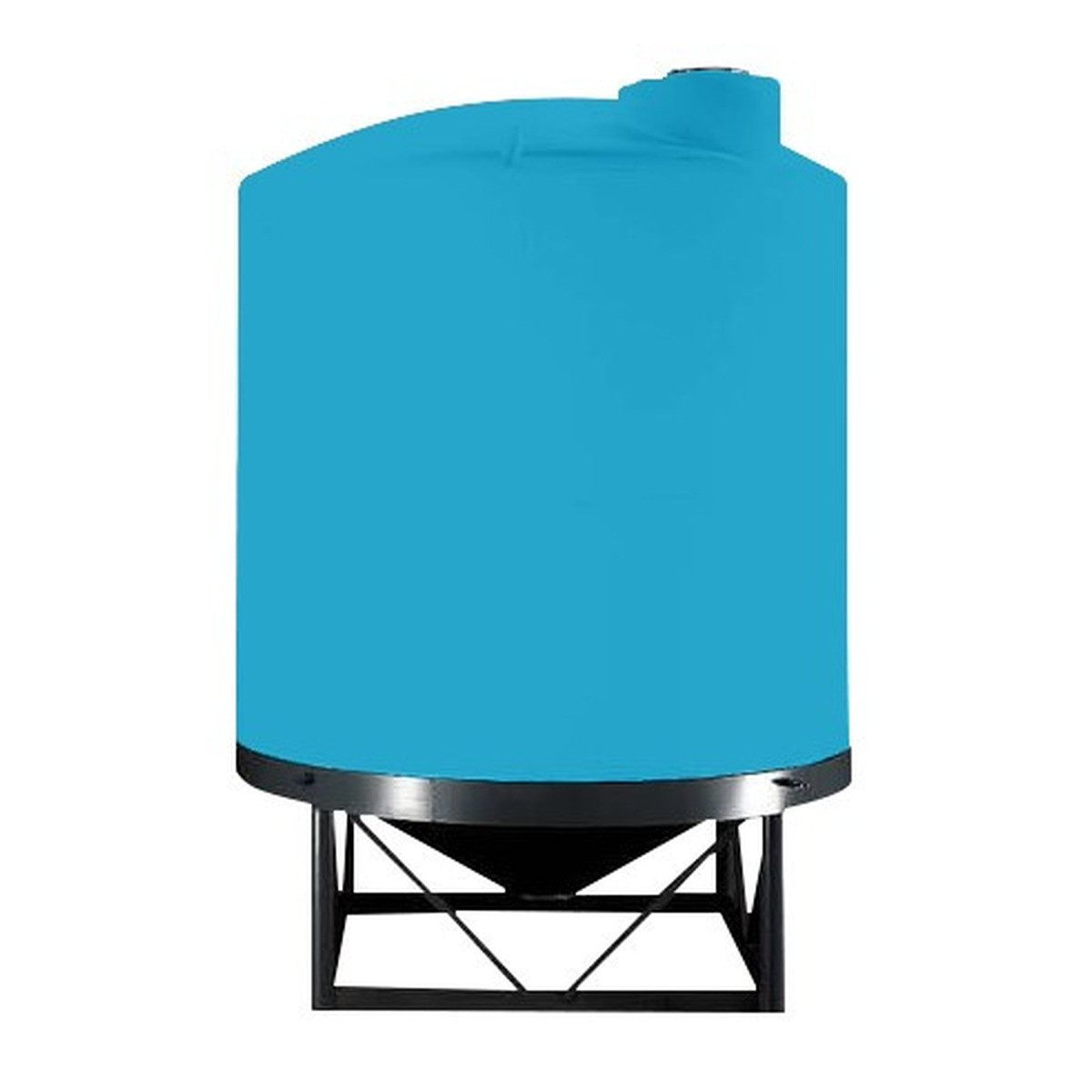

The 5,500 Gallon Cone Bottom Tank, 119'' Diameter x 148'' High provides 5,500 gallons of liquid storage capacity in a cone-bottom tank configuration for mixing, batching, draining, and liquid...
The 5,500 Gallon Cone Bottom Tank, 90'' Diameter x 241'' High provides 5,500 gallons of liquid storage capacity in a cone-bottom tank configuration for mixing, batching, draining, and liquid handling...

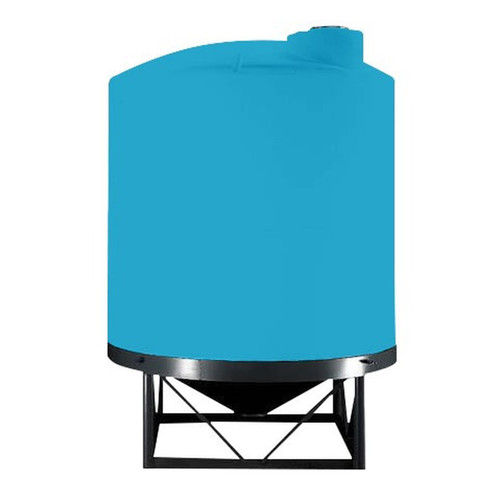

The 3,000 Gallon Heavy Duty Cone Bottom Tank, 91'' Diameter x 120'' High provides 3,000 gallons of liquid storage capacity in a cone-bottom tank configuration for mixing, batching, draining, and...

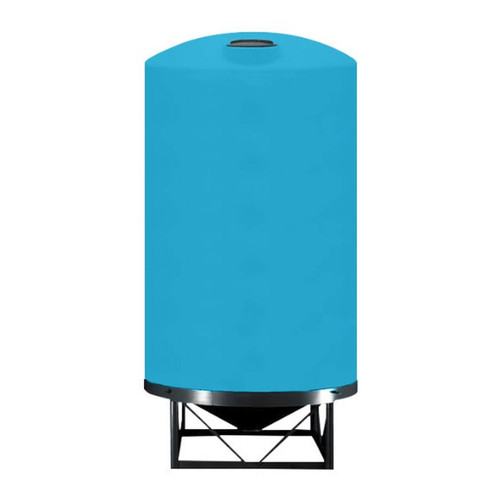

The 6,000 Gallon Heavy Duty Cone Bottom Tank, 102'' Diameter x 195'' High provides 6,000 gallons of liquid storage capacity in a cone-bottom tank configuration for mixing, batching, draining, and...
The 10,000 Gallon Heavy Duty Cone Bottom Tank, 142'' Diameter x 170'' High provides 10,000 gallons of liquid storage capacity in a cone-bottom tank configuration for mixing, batching, draining, and...
Cone bottom tanks are used when drainage, settling, mixing, cleanout, or controlled discharge is important for the liquid handling process. For this model, review capacity: 5,500 gallons, dimensions: 119'' Dia x 148'' H, access: 1 Outlet , 1 Manway / Lid, outlet/drain: 3" PP Female NPT Bulkhead Fitting, manway/lid: 16" Threaded Vented Manway.
Confirm cone angle, stand or support requirements, outlet location, overall height, access opening, and how the tank will be drained or cleaned. Before order release, confirm current lead-time note: Estimated to ship in 1 to 4 weeks. Call 866-285-8646 or email [email protected] for current lead time.; listed shipping data: 1355 lbs. / Ship Class 300.
Compare gallons, footprint, height, clearance, and installation space before choosing the final model.
Check liquid access, outlet or drain details, manway or lid information, and documentation before ordering.
Confirm lead time, destination access, unloading needs, and any freight requirements for the project.
| Tank Capacity | 5,500 gallons |
|---|---|
| Tank Style | Cone Bottom Tank |
| Tank Dimensions | 119'' Dia x 148'' H |
| Liquid Access | 1 Outlet , 1 Manway / Lid |
| Outlet / Drain | 3" PP Female NPT Bulkhead Fitting |
| Manway / Lid | 16" Threaded Vented Manway |
| Weight / Ship Class | 1355 lbs. / Ship Class 300 |
Cone bottom tanks help move liquid or material toward the discharge point for draining, settling, mixing, or cleanout workflows.
Many cone bottom applications require a compatible stand or support arrangement. Review the product documentation and installation requirements.
Confirm the tank height with support, outlet size/location, access opening, liquid compatibility, and site clearance.
Send us the SKU SMS-868-V167-40316 and your application details. We can help compare tank style, capacity, fittings, documentation, and lead-time questions.
