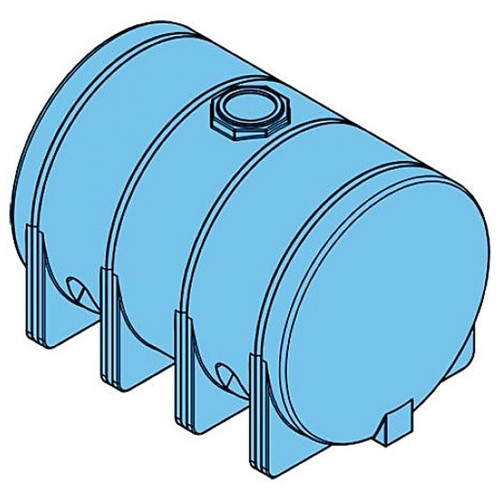

This 5,025-gallon heavy duty horizontal leg tank is built for large-volume above-ground liquid storage where capacity, visibility, and long-term outdoor durability all matter. The translucent body lets you check fluid levels at a glance without opening the tank, while built-in gallon indicators make monitoring even faster - saving time and reducing the risk of running dry or overfilling.

UV stabilization protects the tank from sun-related degradation in outdoor installations, and the 16'' threaded vented manway provides convenient top access for filling, inspection, or cleaning. A 3'' polypropylene female NPT bulkhead fitting with a 2'' reducer is included at the outlet, giving you a ready-to-connect drain point. Five galvanized support bands are required to secure and maintain the tank's shape during use; optional full-length support bands are also available.

At 190'' long, 92'' wide, and 96'' tall, this tank is sized for demanding storage applications where a large footprint is acceptable and high capacity is essential. The horizontal leg design keeps the tank stable on a flat surface, and the above-ground rating means it is intended for surface-level placement rather than underground installation. The included outlet fitting and vented manway allow straightforward integration into existing liquid-handling systems, while the translucent walls and gallon indicators support routine level checks without additional equipment. Customers needing additional fittings beyond the standard outlet should contact us for details on available options.

Key Features:

• 5,025-Gallon Capacity: Provides large-volume above-ground liquid storage in a single tank, reducing the need for multiple smaller vessels.
• Translucent Body with Gallon Indicators: Allows quick visual level checks from the outside, so you can monitor contents without opening the tank or using separate gauges.
• UV Stabilized Construction: Resists sun-related material breakdown for reliable long-term performance in outdoor above-ground installations.
• 16'' Threaded Vented Manway: Provides top access for filling, inspection, and cleaning while the vent helps prevent pressure buildup during use.
• 3'' PP Female NPT Outlet with 2'' Reducer: Included bulkhead fitting at the drain point allows direct connection to standard liquid-handling plumbing.
• Galvanized Support Bands Required (5 Included): Five support bands secure the tank and maintain its shape; optional full-length bands are also available for added stability.

This horizontal leg tank is a practical solution for operations that need substantial above-ground liquid storage capacity in a single unit. The combination of translucent walls, gallon indicators, UV protection, and ready-to-connect fittings makes it well suited for sites where reliable level monitoring and straightforward plumbing connections are priorities. Review support band and fitting requirements before installation to ensure the tank is properly secured and connected for your application.
