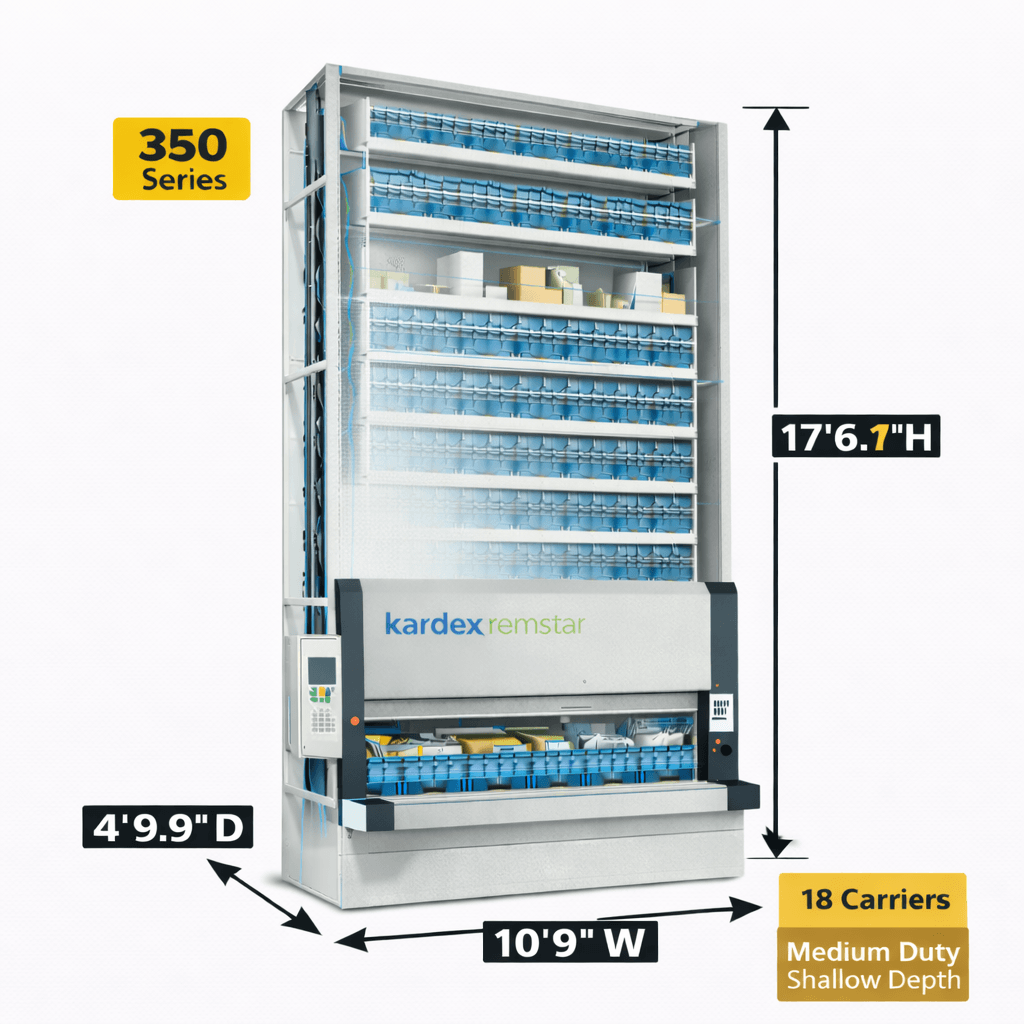

Kardex Megamat 350 Vertical Carousel Modules (VCM) 10' 9'' W x 4' 9.9'' D x 17' 6.1'' H - 18 Carrier - Medium Duty Shallow Depth Storage System

Starting at $122,295.63. Call for Quote.

Kardex Megamat 350 Vertical Carousel Modules (VCM) are medium duty automated storage systems designed for organized storage and retrieval of parts, bins, cartons, and other inventory that requires higher carrier load capacity than lighter duty carousel systems. This 18 carrier shallow depth configuration measures 128.9'' wide x 57.9'' deep x 210.1'' high, making it a strong option for facilities that need high density automated storage with more carrier capacity in layouts where available floor depth is more limited.

The rotating carrier design brings stored items directly to the operator at the access opening, helping reduce walking time, improve picking speed, and support better inventory handling. The Megamat 350 is a good fit for manufacturing, industrial parts storage, healthcare, service parts, maintenance, and other operations where organized vertical storage and increased carrier load capacity are both important.

Key Features:

Medium duty automated storage system: Designed for parts, bins, cartons, and other stored inventory that needs greater carrier capacity than light duty vertical carousel systems.
Goods-to-person retrieval: Rotating carriers bring items to the operator access point to improve retrieval speed and reduce travel time.
18 carrier configuration: Supports high density vertical storage while keeping inventory organized and easier to access.
772 lbs. maximum load per carrier: Built for medium duty storage requirements within the Megamat 350 line.
17.52'' carrier clear height: Supports storage of larger cartons, containers, bins, and similar inventory.
20.708'' carrier surface clear depth: Shallower carrier depth helps fit more space-conscious layouts while maintaining usable storage capacity.
Steel construction: Built for industrial, commercial, and institutional storage applications.
Galvanized or ESD galvanized steel core material: Supports organized storage for parts and component handling applications.
Space-saving vertical design: Helps reduce the floor space needed for stored inventory compared to standard shelving layouts.
Well suited for frequent access inventory: A good option for operations that need organized storage and quicker retrieval of parts and supplies.

This Kardex Megamat 350 Vertical Carousel Module is a good option for facilities that need medium duty automated storage with a shallower machine depth and higher carrier capacity. It is commonly used for medical supplies, maintenance inventory, electronics, manufacturing support, and service parts storage where space savings, access speed, and inventory control are important.

Southwest Solutions Group provides quotes, product guidance, and complete project support for Kardex Megamat Vertical Carousel Modules. We can help you select the right model for your application and assist with planning, layout, installation, and implementation. To request pricing or speak with a storage specialist, call 866-285-8646 or visit our Contact Us page.

SKU:: SMS-806-V159-RS-350.2.2650.5.495.18

Select Options 1 to 5

Start Over

Current Stock:

Product Information

Specification Table

Please configure your product to view product specifications.

Support Documents

Specifications

Architectural Drawings

View Architectural Revit Models

Videos

Freight

Compare with Similar Items

Related Products

[{"id":459708,"name":"Documentation","value":"Specifications [] https://products.storemorestore.com/hubfs/StoreMoreStore/Kardex-Vertical-Carousel-Modules/RS-350.2.2450.5.495.14-SpecSheet.pdf"},{"id":459709,"name":"Revit","value":"https://fetchbim.com/product/115/ssg-carousel-vertical-bulk-large-narrow-pcs"},{"id":459710,"name":"Product Width","value":"121.1''"},{"id":459711,"name":"Product Depth","value":"57.9''"},{"id":459712,"name":"Product Height","value":"171.7''"},{"id":459713,"name":"Material","value":"Steel"},{"id":459714,"name":"Core Material","value":"Galvanized or ESD Galvanized Steel"},{"id":459715,"name":"Color/Finish","value":"Light Gray"},{"id":459716,"name":"Number of Carriers","value":"14"},{"id":459717,"name":"Carrier Pitch","value":"19.5''"},{"id":459718,"name":"Maximum Load per Carrier","value":"772 lbs."},{"id":459719,"name":"Carrier Clear Height","value":"17.52''"},{"id":459720,"name":"Carrier Surface Clear Depth","value":"20.708''"},{"id":459721,"name":"Storage Area Per Unit","value":"292.3 sq. ft."},{"id":459722,"name":"Cubic Storage Per Unit","value":"284.4 cu. ft."},{"id":459723,"name":"Permissible Total Unit Weight","value":"17,048 lbs."},{"id":459851,"name":"Quote","value":"Disabled"},{"id":514659,"name":"MC","value":"214"},{"id":514660,"name":"PLU","value":"041526"},{"id":658671,"name":"Assembly","value":"Unassembled"},{"id":658672,"name":"Warranty","value":"2 Years Parts & Labor  Warranty"},{"id":658673,"name":"Country of Origin","value":"USA"},{"id":718527,"name":"Availability","value":"Call for Availability"}]
