The Kardex Remstar Blood Slide Pathology Vertical Carousel Storage System is a high-density automated vertical carousel module for pathology slide storage, blood slide storage, histology slide storage, microscope slide storage, and long-term laboratory archive organization. Designed for hospitals, pathology departments, reference laboratories, research facilities, and medical record archive rooms, this system stores glass slide trays on enclosed rotating carriers and delivers the selected carrier to an ergonomic access opening so staff can retrieve slide trays without searching rows of manual cabinets or pulling heavy drawers. This configuration includes 17 carriers, 374 slide trays, and an approximate capacity of 263,296 glass slides, making it a space-saving pathology carousel storage system for facilities that need to consolidate high-volume retained slides, reduce clutter, improve retrieval workflow, and make better use of vertical ceiling height without expanding the lab footprint. Pricing is for Product only: Request a quote or call for installation, setup, and freight. Multiple configurations available.

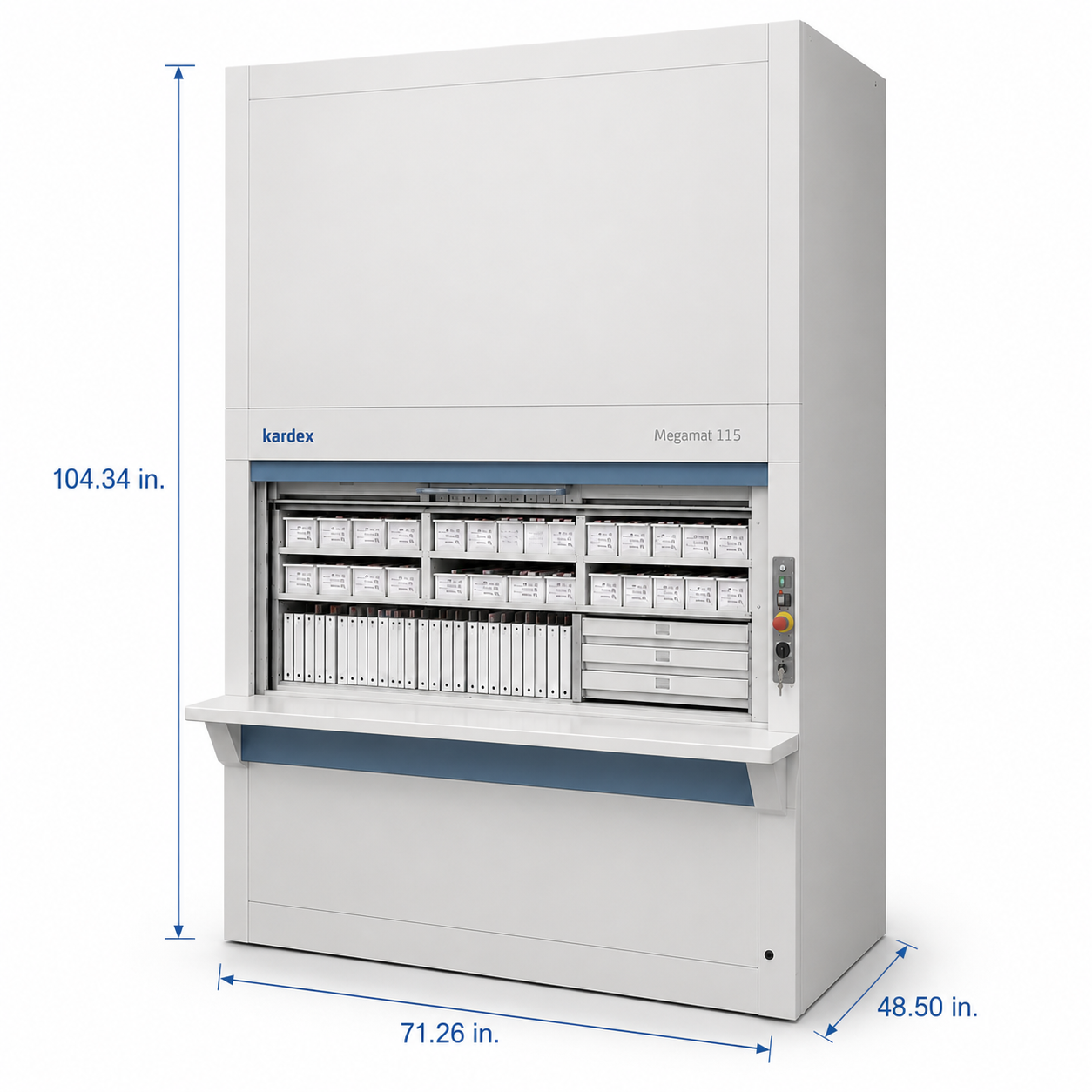

This 17-carrier SSG-115 pathology vertical carousel is listed with 34 total storage levels, 704 slides per tray, and 22 trays per carrier. The unit measures 71.26" wide x 48.5" deep with the workcounter/posting board, or 36.42" deep without the workcounter, x 104.34" high, with a recommended minimum ceiling clearance of 105.13". Standard source-spec equipment includes LC24 Control, OP24 Keyboard, computer interface module, full-width access lighting, manual bi-parting door with keylock, safety light curtain, left and right emergency stops, upper and lower touch bars, imbalance detection, emergency service switch, manual handcrank, and TUV label. Power is listed as 110 Volt / 1-phase / 60 Hz / 16 AMP, and average access time is listed at 6.1 seconds. Approximate empty weight is 2,978 lb and approximate fully loaded weight is 8,010 lb, with average floor load listed at 444.44 lb/sq ft and dynamic floor load listed at 601.92 lb/sq ft. Floor loading, ceiling clearance, delivery path, seismic conditions, electrical service, freight, setup, and installation requirements should be reviewed before ordering.
Key Features:
- High-Density Slide Capacity: provides 17 carriers, 374 slide trays, and approximately 263,296 glass slide capacity for high-volume pathology and histology archives.
- Pathology Tray Storage: Dedicated slide tray layout stores 704 slides per tray and 22 trays per carrier to help organize retained blood slides, microscope slides, and patient case material.
- Space-Saving Vertical Design: 71.26" wide cabinet uses 104.34" vertical height to consolidate large slide archives in less floor space than rows of manual slide cabinets or drawer files.
- Ergonomic Goods-to-Person Access: Rotating carriers deliver stored slide trays to the access opening and 39.4" work counter to reduce walking, bending, drawer pulling, and handling strain.
- Control and Safety Package: Includes LC24 Control, OP24 Keyboard, computer interface module, full-width access lighting, lockable manual bi-parting door, safety light curtain, emergency stops, touch bars, imbalance detection, emergency service switch, manual handcrank, and TUV label.
- Project Review Required: Built-to-order system requires quote review for freight, installation, setup, ceiling clearance, power, delivery path, and listed floor loads of 444.44 lb/sq ft average and 601.92 lb/sq ft dynamic.
CSI MasterFormat Section: 41 51 13 - Automatic Storage/Automatic Retrieval Systems
Southwest Solutions Group provides quotes, product guidance, and complete project support for Kardex Megamat Vertical Carousel Modules. We can help you select the right model for your application and assist with planning, layout, installation, and implementation. To request pricing or speak with a storage specialist, call 866-285-8646, email [email protected], or visit our Contact Us page.
