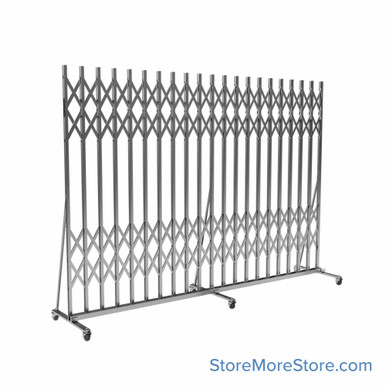

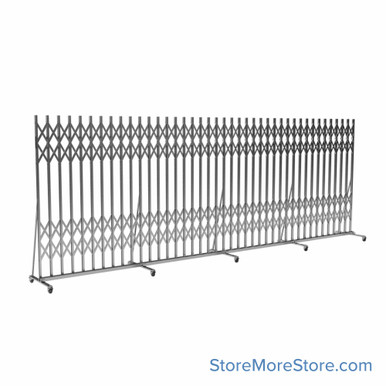

Our 30" wide base, 78.5" tall portable folding security gates offer security solutions with options to fit various openings, ranging from 3.5' to 18' wide. These accordion-style gates are not only flexible but also highly portable, equipped with wheels for easy relocation when not in use. Ideal for an array of applications, these gates effectively enhance security. Please note that these gates are designed for indoor use.

Key Features:

• Core Material: Steel
• Equipment Type: Security Gates

Additional Features:

• Gates are constructed of a combination of zinc-plated steel and galvanized steel.
• Gates include bumpers to protect walls.
• Gates come standard with a padlock hasp (padlock not included). Optional cylinder locks and floor/wall anchoring packages are available upon request.
• Two or more gates can be joined together to secure larger openings.
• Shear bars are zinc plated. Picket channels are galvanized steel. All remaining portable gate parts are powder coated silver finish.
• Basic Gate Operation
• Extend gate until rubber bumpers touch both walls.
• Lower lock channels together.
• Raise both channels and engage the pin in aligning holes.
• Applying moderate pressure, push down on channels until they rest in the locking bracket.
• Lock in position with a padlock.
• Vertical picket channels are 14-gauge galvanized steel with .75'' by .375'' channels spaced 6'' on center.
• Shear bars (lattice bars) are .1875” by .625'' zinc plated flat bar, fitted with free-floating nylon rollers.
• The gate body is welded to 2.625'' by 1'' x 12-gauge 7/8'' outside diameter welded tubing.
• Carriage channels are 2.625'' by 1'' by 12-gauge steel. Each channel is fitted with two 2.5'' ball bearing swivel casters.
• Retainer channels are 2.28” by 1'' by 12-gauge steel.
• Male lock channel is 2.25'' by 1'' by 12-gauge steel.
• Female lock channel is 1.875 by 1.625'' by 14-gauge steel.

Legacy Part Number: SMS-39-P601-15
