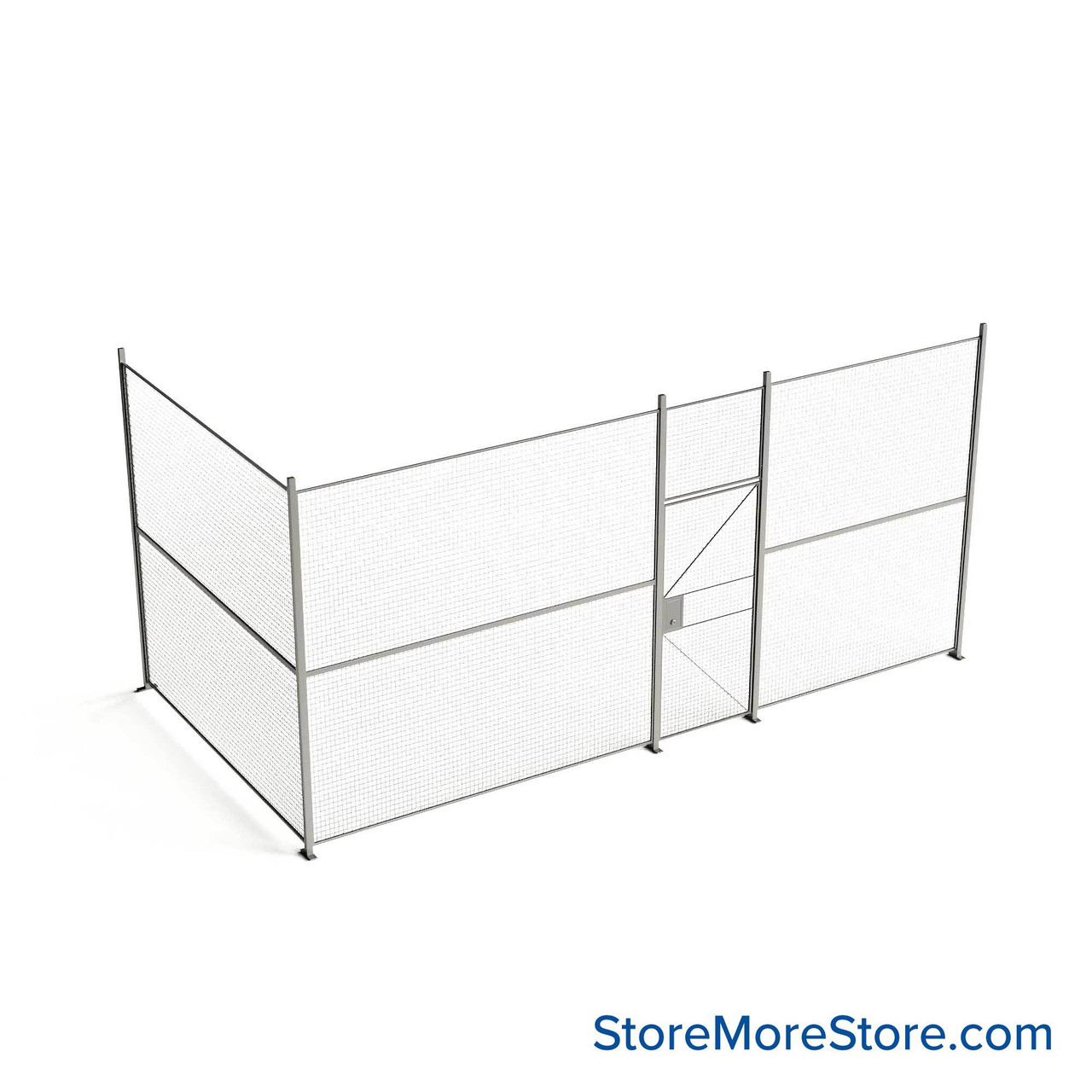

The Wire Mesh Parition is crafted to create secure enclosures within your existing space, offering a versatile solution for storing tools, servers, machinery, evidence, and more. Featuring welded wire panels with a straightforward design, this cage minimizes the required parts compared to standard partitions, making installation and relocation a breeze. Whether in industrial settings, data centers, or law enforcement agencies, this security cage ensures your valuable assets are protected, organized, and easily accessible, offering a cost-effective and efficient solution for maintaining the integrity and security of your stored items.

Key Features:

• Core Material: Welded Wire
• Enclosure Type: Cages
• Lock Type: Key Lock
• Sides: 2
• Door: 3' Hinged

Additional Features:

• The wire panels are 10-gauge welded wire with a 2''X2'' square mesh (actual openings are 1.875'') with 1.25''X1.25'' 13-gauge rolled form angle frame.
• When the panels are attached to posts, panels are 3.25'' off the ground. Welded wire panels can be notched around pipes and obstructions if required.
• Posts are universal and can be used as corners or straight runs. Posts project 2'' above the top of the panels. Standard post baseplates are 7''X2'' welded to the post with anchoring holes (baseplates extend out 2.5'' on both sides of the post). Floor anchors are included.
• Hinged doors can be mounted to hinge on the left or right hand with an inside or outside swing. The door is 3' wide by 7' 3.25'' high with a transom panel sized to match the partition height. The door has three 4''X1'', 10-gauge pin hinges. Option 4' hinged doors are available upon request.
• Sliding doors can be mounted for left or right-hand slide on the inside or outside of the fence. Sliding doors are full height to match partition height. Overhead track with two 4-wheel trolleys and all hardware is included.
• The fastening hardware is .375'', the heaviest in the industry, with bolts that are only accessible from inside.
• .375'' wedge-type concrete floor anchors are included.

Questions about Wire Mesh Paritions? Contact us and our team can help you choose sizes, options, and accessories.

Specification Reference

This product falls under:
CSI MasterFormat Section 10 22 13 – Wire Mesh Partitions

Legacy Part Number: SMS-79-WHD3-2-31-10
