Please configure your product to view product specifications.
- Core Material: Steel
- Type of Shelves: Adder Unit
- Number of Shelves: 3
- Product Depth: 3'
- Product Width: 8'
- Product Height: 16'

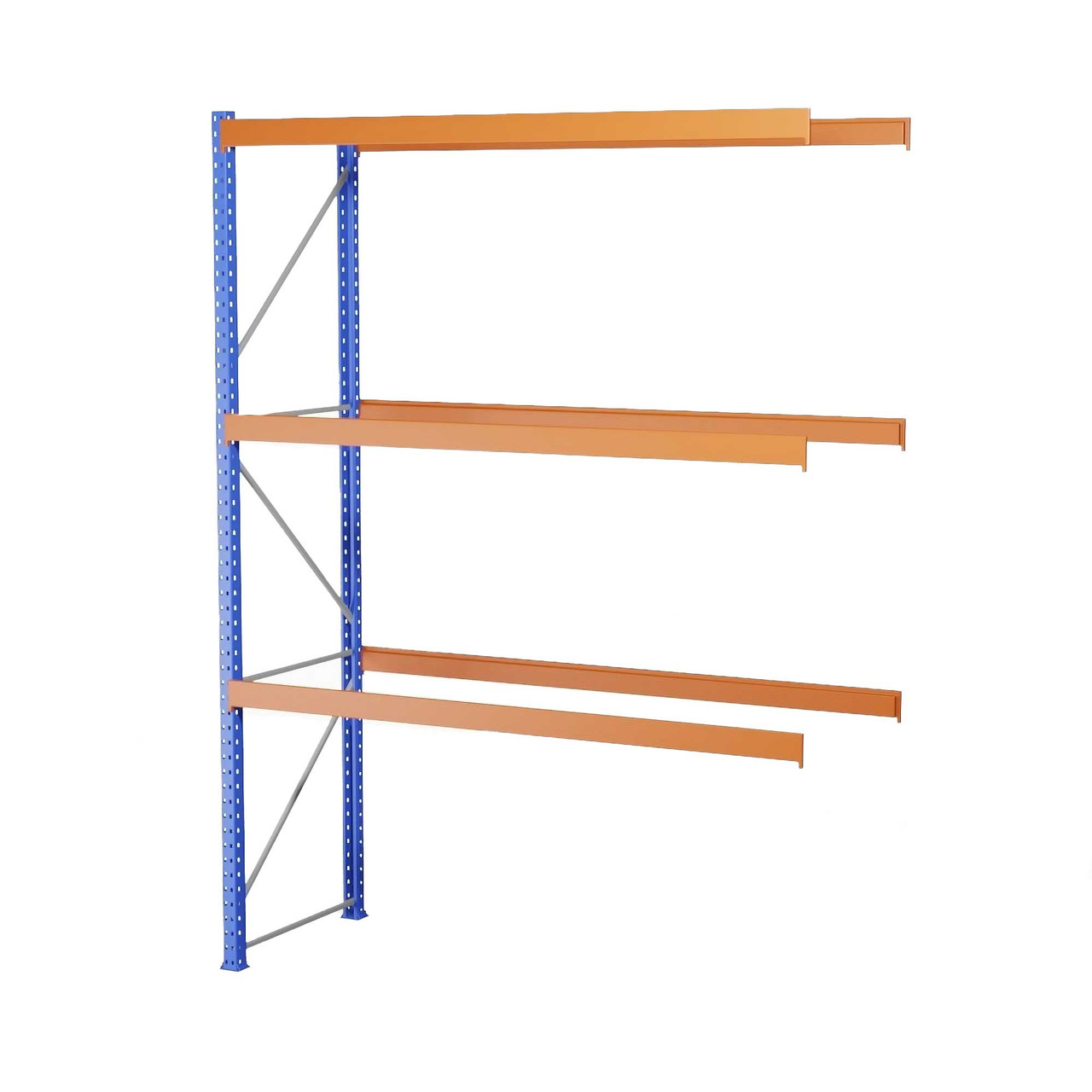

Heavy-Duty Pallet Rack Add-On Unit - 8' W x 3' D x 16' H
Call for Pricing
The Heavy-Duty Pallet Rack Add-On Unit - 8' W x 3' D x 16' H is a Add-On unit with 3 adjustable shelves. Units feature step-type beams and bolt-together uprights (welded uprights available upon request), with additional beam levels, upright protectors, pallet supports, row ties, and wall ties available for customizable storage solutions.
Key Features:
- Construction: All components are constructed from galvanized cold-rolled steel.
- Uprights: Bolt-together uprights with footplates; anchors and shims optional.
- Units: Starter units include two uprights; add-on units include one upright and must connect to a starter unit.
- Beams: Step-type beams attach to uprights and include safety pin locks.
- Finish: Uprights painted blue and beams painted orange for clear visibility.
Designed for flexible, high-capacity warehouse storage, these pallet racks offer durable, customizable configurations to meet a wide range of material-handling needs.
- SKU:
- SMS-03-V123-9636192-3A
