This under pallet rack aisle free pull out storage system is designed to reclaim unused space beneath pallet racking by positioning shelving carriages directly under the rack structure. The carriages pull forward from beneath the rack only when access is required, using the main aisle as a temporary access point and eliminating the need for permanent aisles below the rack.

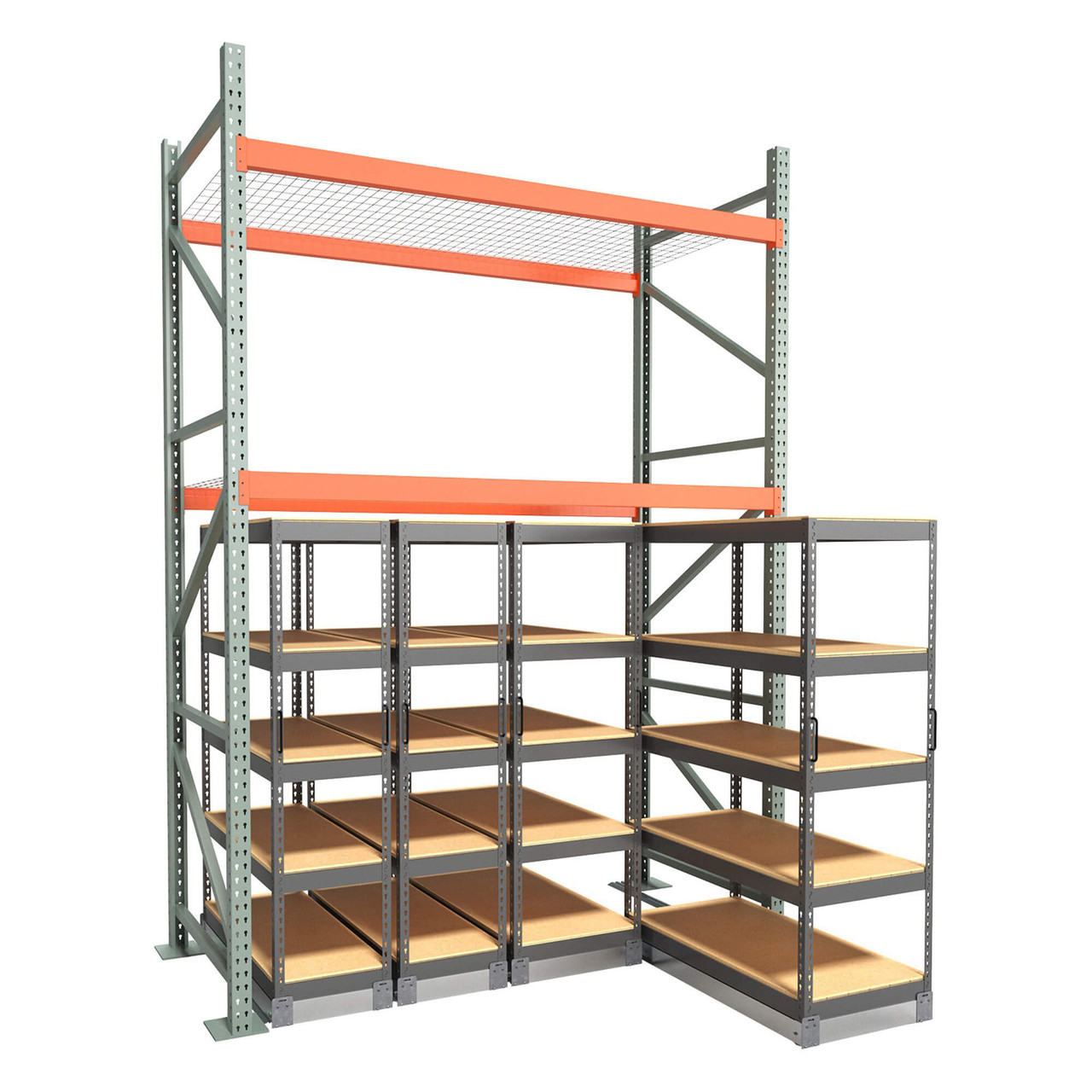

This configuration is designed for an 8 ft wide pallet rack bay and includes four under rack pull out carriages with particle board shelving. The carriages operate on a concealed floor mounted flat track system that remains hidden beneath the rack, while a front mounted urethane wheel supports smooth movement along the floor surface and maintains alignment during operation without obstructing aisle traffic.

Pallet Rack Not Included.

Key Features:

• Aisle Free Pull Out Access: Carriages extend into the main aisle only when needed, eliminating fixed aisles beneath the pallet rack and maximizing available storage space.
• Four Pull Out Storage Carriages: Includes a total of four mobile carriages designed to fit beneath an 8 ft pallet rack bay.
• Mixed Carriage Sizes: Configuration consists of two 48" wide x 24" deep carriages and two 48" wide x 18" deep carriages.
• Particle Board Shelving: Solid particle board shelves provide a continuous storage surface for cartons, boxes, and small items.
• Load Rated Mobile Carriages: Each carriage is designed to support loads up to 3000 lbs.
• Adjustable Rivet Style Shelving: Shelves adjust in 1.5 inch increments, allowing storage layouts to be reconfigured as inventory needs change.
• Shelf Load Capacity: Depending on shelf size and configuration, each shelf supports approximately 400 to 600 lbs.
• Concealed Flat Track Guidance: Floor mounted flat track system guides carriage movement while remaining hidden beneath the pallet rack structure.
• Front Urethane Wheel Support: Front mounted urethane wheels roll smoothly along the floor surface while the concealed track maintains alignment.

This under pallet rack pull out storage configuration is commonly used to organize cartons, totes, bins, and small inventory beneath palletized goods, converting underutilized rack space into accessible floor level storage without impacting primary aisle flow.
