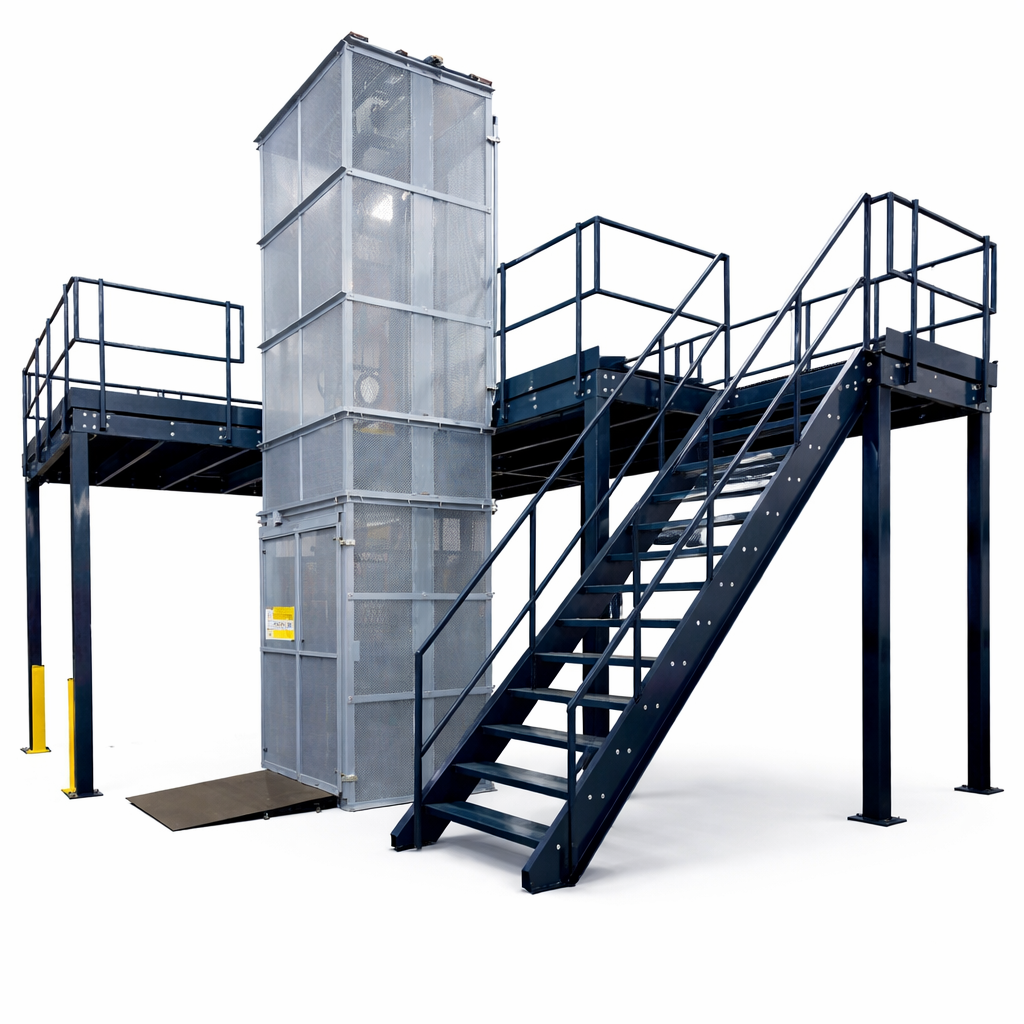

The PMB Series Bolt-Together Pallet Lift is a modular vertical reciprocating conveyor for moving pallets, carts, and packaged materials between floors or mezzanine levels. Its sectional bolt-together construction simplifies transport into the building and on-site assembly, making it especially useful for facilities where access, renovation conditions, or installation logistics make a fully welded structure difficult to position. Pricing is for the product only: Request a quote or call for installation, setup, and freight.

This starting configuration uses manufacturer model PMB-25-72x72x72-2-C43 with a 2,500 lb load capacity, 72 x 72 inch platform, and 8-10 ft travel height. Factory-prepared modular sections are coordinated with the selected loading arrangement, landing gates, enclosures, controls, electrical service, and supporting structure. Estimated availability is 8-10 weeks. Pricing shown is for the product only; installation, setup, and freight are quoted separately.

Key Features:

Bolt-Together Modular Structure: Sectional construction supports easier transport, staging, and assembly in existing facilities.
2,500 lb Starting Capacity: Designed to move palletized products, carts, and industrial materials within the specified capacity.
72 x 72 Inch Platform: Offers useful loading space for standard pallets and larger cart-based loads.
Installation-Friendly Design: Compact structural sections and factory preparation help streamline field assembly and wiring.
Configurable Landing Access: Gate and opening directions can be coordinated with floor plans and material-flow requirements.
Manufacturer Warranty: Motor: 5 years; manufactured parts: 2 years; purchased parts: 2 years.

The PMB Series combines practical pallet-handling capacity with a modular structure suited to challenging installation paths and existing buildings. Southwest Solutions Group can help verify the equipment configuration, landing conditions, safety requirements, and installation plan before ordering. Learn more about vertical reciprocating conveyor solutions, call 1-866-285-8646, or contact our team to request a project quote.

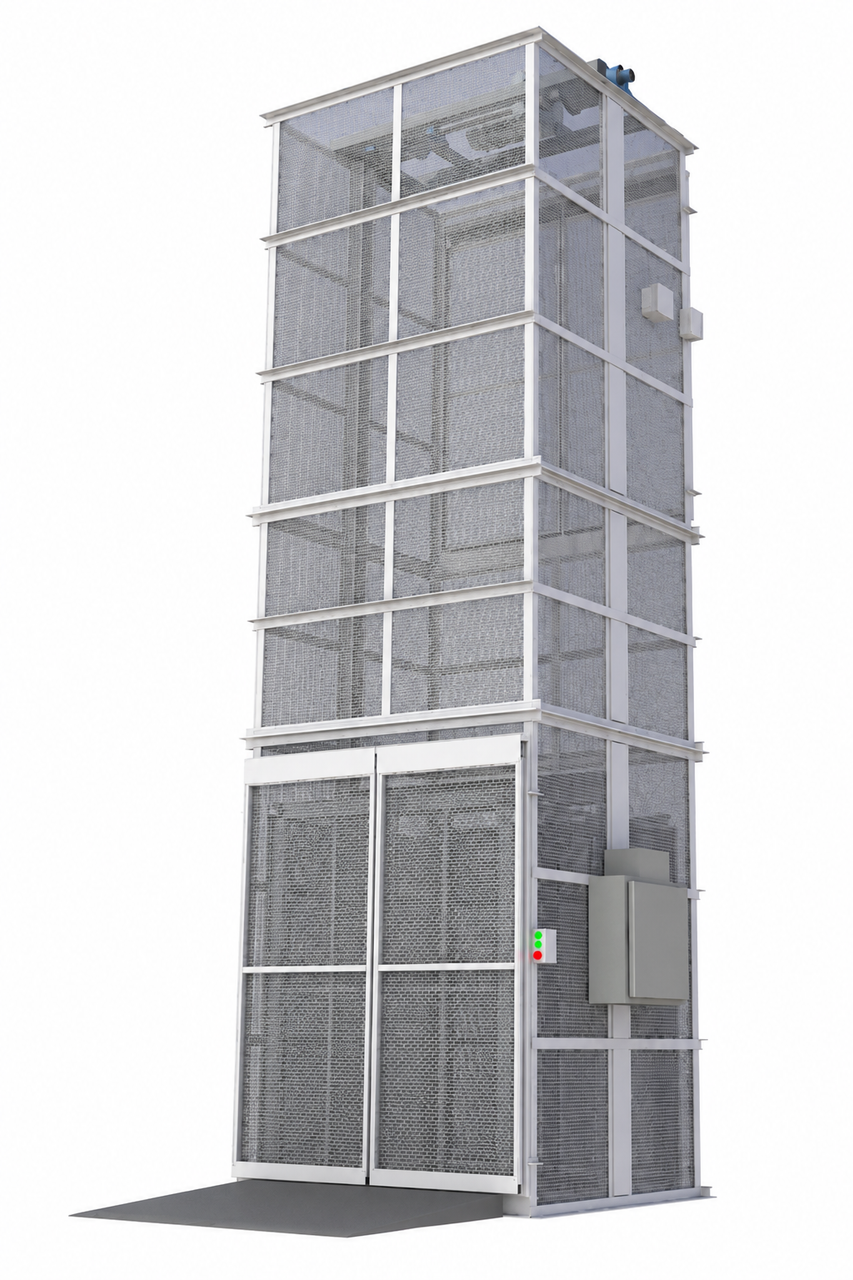

PMB Series Bolt-Together Pallet Lift - PMB-25-72x72x72-2-C43

Revit

SKU: SMS-08-V162-VRC-PMB

PMB Series Bolt-Together Pallet Lift

Name: PMB Series Bolt-Together Pallet Lift
SKU: SMS-08-V162-VRC-PMB
Price: 67771.62 USD
Availability: InStock

★★★★★ 4.8 Google Reviews

Product Description

Price

$67,771.62

$86,205.51

(You Save $18,433.89 ) test

QTY

BBB Accredited Business: A+ | Secure Checkout

Enter a Zip

Questions? We're here to help. Call 866-285-8646 or email us.

Overview

Product Description

Specifications

Spec Table

Load Capacity	2500
Material	Steel
Core Material	Steel
Platform Size	72 inches x 72 inches
Color/Finish	Gray
Travel Height	8-10 feet
Lift Speed	Up to 25 feet per minute
Drive Type	Mechanical Chain Drive
Configuration	C Z Pass Through
Voltage	208 to 480V 3 Phase
Mounting Type	Floor Mounted
Compliance	ASME B20.1
MC	216
PLU	032126
Weight Capacity	2500
Warranty	Motor: 5 Years; Manufactured Parts: 2 Years; Purchased Parts: 2 Years

Dimensions & Weight

Width	60 inches
Height	25 inches
Depth	60 inches
Weight	5500 lbs
