The S Series Straddle Vertical Reciprocating Conveyor is a dual-supported industrial material lift for moving pallets, carts, supplies, and equipment between floors or mezzanine levels. Supporting the carriage from both sides provides a stable lifting arrangement and makes the S Series well suited to warehouse, manufacturing, stockroom, and distribution applications with regular multi-level material flow. Pricing is for the product only: Request a quote or call for installation, setup, and freight.

This starting configuration uses manufacturer model S2-25-48x48x72-C43 with a 2,500 lb load capacity, 48 x 48 inch platform, and 8-10 ft travel height. Loading direction, landing gates, enclosures, controls, electrical service, and integration with the floor or mezzanine are finalized for the application. Estimated availability is 7-9 weeks. Pricing shown is for the product only; installation, setup, and freight are quoted separately.

Key Features:

Dual-Sided Straddle Design: Support on both sides of the carriage provides stable guided travel for routine industrial material handling.
2,500 lb Starting Capacity: Handles palletized goods, carts, supplies, and equipment within the specified operating capacity.
48 x 48 Inch Platform: Provides a compact loading surface for common warehouse and production-area loads.
Multiple Access Options: The loading and unloading arrangement can be configured to match straight-through or directional material flow.
Engineered Landing Protection: Safety enclosures, interlocked gates, and operator controls are coordinated with each floor opening.
Manufacturer Warranty: Motor: 5 years; manufactured parts: 2 years; purchased parts: 2 years.

The S Series provides a versatile way to move materials between levels while reducing manual handling and forklift travel on ramps. Southwest Solutions Group can help determine the correct platform, travel, access, guarding, and installation plan for your operation. Learn more about vertical reciprocating conveyor solutions, call 1-866-285-8646, or contact our team to request a project quote.

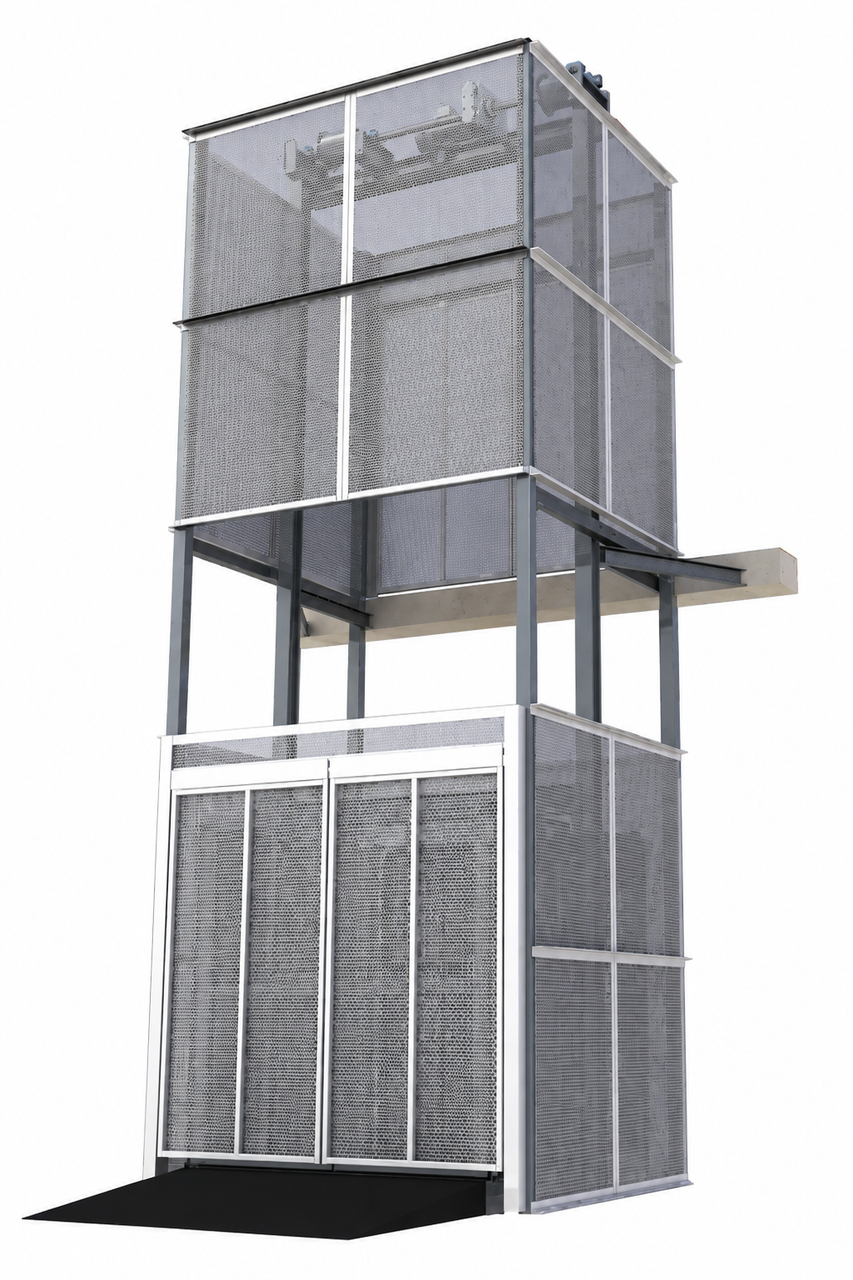

S Series Straddle Vertical Reciprocating Conveyor - S2-25-48x48x72-C43

Revit

SKU: SMS-08-V162-VRC-S

S Series Straddle Vertical Reciprocating Conveyor

Name: S Series Straddle Vertical Reciprocating Conveyor
SKU: SMS-08-V162-VRC-S
Price: 59304.18 USD
Availability: InStock

★★★★★ 4.8 Google Reviews

Product Description

Price

$59,304.18

$75,434.92

(You Save $16,130.74 ) test

QTY

BBB Accredited Business: A+ | Secure Checkout

Enter a Zip

Questions? We're here to help. Call 866-285-8646 or email us.

Overview

Product Description

Specifications

Spec Table

Load Capacity	2500
Material	Steel
Core Material	Steel
Platform Size	48 inches x 48 inches
Color/Finish	Gray
Travel Height	8-10 feet
Lift Speed	Up to 25 feet per minute
Drive Type	Mechanical Chain Drive
Configuration	C Z Pass Through
Voltage	208 to 480V 3 Phase
Mounting Type	Floor Mounted
Compliance	ASME B20.1
MC	216
PLU	032126
Weight Capacity	2500
Warranty	Motor: 5 Years; Manufactured Parts: 2 Years; Purchased Parts: 2 Years

Dimensions & Weight

Width	144 inches
Height	32 inches
Depth	120 inches
Weight	10000 lbs

Architectural Drawings

Revit

Click to download the Revit file for this product

Documents

Documentation

Videos

Freight

Warehouse Mezzanine, 144" W x 96" D x 96" H, Perforated Steel, IBC Approved Stairway

$13,241.12

$17,624.90

(You Save $4,383.78 ) test

Our warehouse mezzanine is a smart way to make more room in your building without moving or building an addition. These prefabricated mezzanine kits include floor decking, handrails, and stairs...

Choose Options

Warehouse Mezzanine, 120" W x 240" D x 96" H, Perforated Steel, OSHA Approved Stairway

$18,230.01

$24,265.47

(You Save $6,035.46 ) test

Our warehouse mezzanine is a smart way to make more room in your building without moving or building an addition. These prefabricated mezzanine kits include floor decking, handrails, and stairs...

Choose Options

Warehouse Mezzanine, 144" W x 96" D x 96" H, Perforated Steel, OSHA Approved Stairway

$10,815.06

$14,395.63

(You Save $3,580.57 ) test

Our warehouse mezzanine is a smart way to make more room in your building without moving or building an addition. These prefabricated mezzanine kits include floor decking, handrails, and stairs...

Choose Options

Warehouse Mezzanine, 120" W x 120" D x 96" H, Solid Steel Grating, IBC Approved Stairway

$13,231.95

$17,612.70

(You Save $4,380.75 ) test

Our warehouse mezzanine is a smart way to make more room in your building without moving or building an addition. These prefabricated mezzanine kits include floor decking, handrails, and stairs...

Choose Options

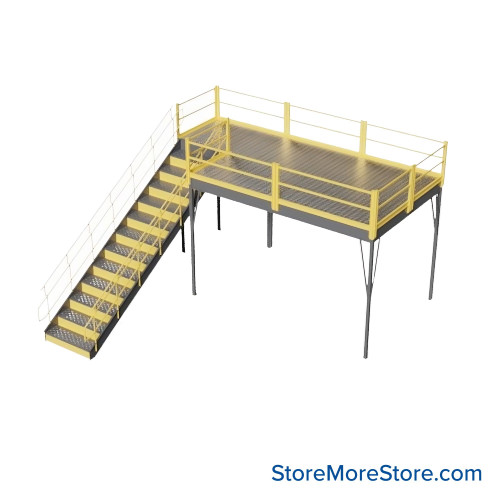

Warehouse Mezzanine, 144" W x 96" D x 96" H, Solid Steel Grating, IBC Approved Stairway
