Move bulky carpet, vinyl, textile, paper, film, and other rolled materials off the floor and into one compact, organized workstation. This motorized vertical carousel uses overhead space to reduce the footprint of long-roll storage, protect material from floor-level damage, and bring the selected roll to a practical access height instead of sending employees to search, climb, drag, or repeatedly lift difficult stock.

Simple up/down controls rotate the carrier loop while each roll remains supported horizontally on its pole. Operators can identify, dispense, measure, and cut material directly from the carousel, helping shorten retrieval time, improve throughput, and keep production or retail roll-handling work moving with less unnecessary handling.

Model SSC-RL-109-14-6 provides 6 roll carriers for material up to 28 inches OD and 12 feet long. It measures 168 inches wide x 79 inches deep x 109 inches high. Standard roll capacity is 750 lb per carrier; heavy-duty configurations can support up to 1,500 lb per carrier under certain conditions, subject to the approved design and 16,000 lb maximum gross-load limit.

How the Vertical Roll Storage Carousel Works

Rolls are suspended horizontally on carrier poles that travel around a continuous vertical loop. The operator uses straightforward up/down controls to rotate the selected material to the access opening. Because the roll stays supported during dispensing, measuring, and cutting, the workstation can replace long rows of static racks while reducing the lifting, bending, ladder use, and forklift access often required by conventional roll storage.

Why Use a Motorized Roll Carousel?

Recover floor space: Vertical storage can save up to 70% of the floor area used by conventional roll storage, depending on the inventory mix and existing layout.
Protect valuable material: Keeping rolls supported and off the floor helps reduce crushing, contamination, edge damage, and trip hazards.
Bring material to the operator: The carousel presents the selected roll at an accessible work position instead of requiring employees to retrieve it from elevated or floor-level racks.
Measure and cut at the machine: Material can be dispensed, measured, and cut directly from the supported roll.
Improve organization and throughput: Centralized roll storage makes inventory easier to identify and can shorten the time needed to fill production, fabrication, or customer orders.
Use simple controls: Motorized up/down operation is straightforward to learn and does not require a complex computer-controlled vertical lift module.

Recommended Applications

Carpet, rug, flooring, and home-improvement operations
Vinyl, fabric, textile, upholstery, and flexible sheet-material storage
Paper, film, printing, packaging, and converting operations
Manufacturing and fabrication departments handling long rolls
Warehouses, distribution centers, and retail roll-material dispensing areas

Model Specifications

Model	SSC-RL-109-14-6
Number of Roll Carriers	6
Maximum Roll Diameter	28" OD
Standard Usable Roll Length	12 ft.
Standard Roll Capacity	750 lb per carrier
Heavy-Duty Roll Capacity	Up to 1,500 lb per carrier under certain conditions; confirm with configured quote
Maximum Gross Load	Up to 16,000 lb including poles, hardware, and stored product; heavy-duty configuration required
Overall Width	168" (14')
Overall Depth	79" (6' 7")
Overall Height	109" (9' 1")
Required Clear Height	121" (10' 1"), including 12" overhead clearance
Controls	Simple motorized up/down controls
Finish	Durable powder-coated finish; final color confirmed with quote
Warranty	Warranty coverage and terms confirmed with project quote

Capacity and Carrier Configuration

The standard carrier-pole capacity is 750 lb per roll. Heavy-duty configurations can support up to 1,500 lb per carrier under certain conditions, with a maximum gross load of 16,000 lb including poles, hardware, and stored product. The 12-foot usable carrier length is standard for this model family, and pole lengths from 4 to 15 feet are available. Final capacity must be checked against roll diameter, length, loaded weight, core and pole requirements, load balance, access position, and the approved carousel design.

Options and Project Planning

Available configurations can include alternate carrier-pole lengths, heavy-duty roll support, alternate carousel sizes, and application-specific measuring and cutting setups. Options are configured for the application and priced only as part of the project quote.

For accurate sizing, provide the roll outside diameter, roll length, loaded weight, core size, quantity of each material, measuring or cutting requirements, available floor space, clear ceiling height, desired access position, facility power, installation address, and unloading constraints. Electrical requirements, controls, guarding, floor and anchoring conditions, service access, freight, installation, warranty, and final color should be confirmed in the approved project proposal.

Built for Daily Roll Storage and Dispensing

This USA-made vertical roll carousel fills the gap between conventional static racks and more complex automated storage equipment. It is intended for operations that need a durable, straightforward way to store more long-roll inventory, bring material to the operator, and keep measuring, cutting, and dispensing work organized in a smaller footprint.

Specification Reference

This product falls under:

CSI MasterFormat Section 41 51 00 - Automatic Material Storage
CSI MasterFormat Section 41 51 13 - Automatic Storage/Automatic Retrieval Systems
CSI MasterFormat Section 41 53 00 - Storage Equipment and Systems

Southwest Solutions Group provides quotes, product guidance, and complete project support for vertical carousel systems. We can help you select the right model for your application and assist with planning, layout, shipping, installation, setup, and implementation. To request pricing or speak with a storage specialist, call 1-866-285-8646, email [email protected], or visit our Contact Us page.

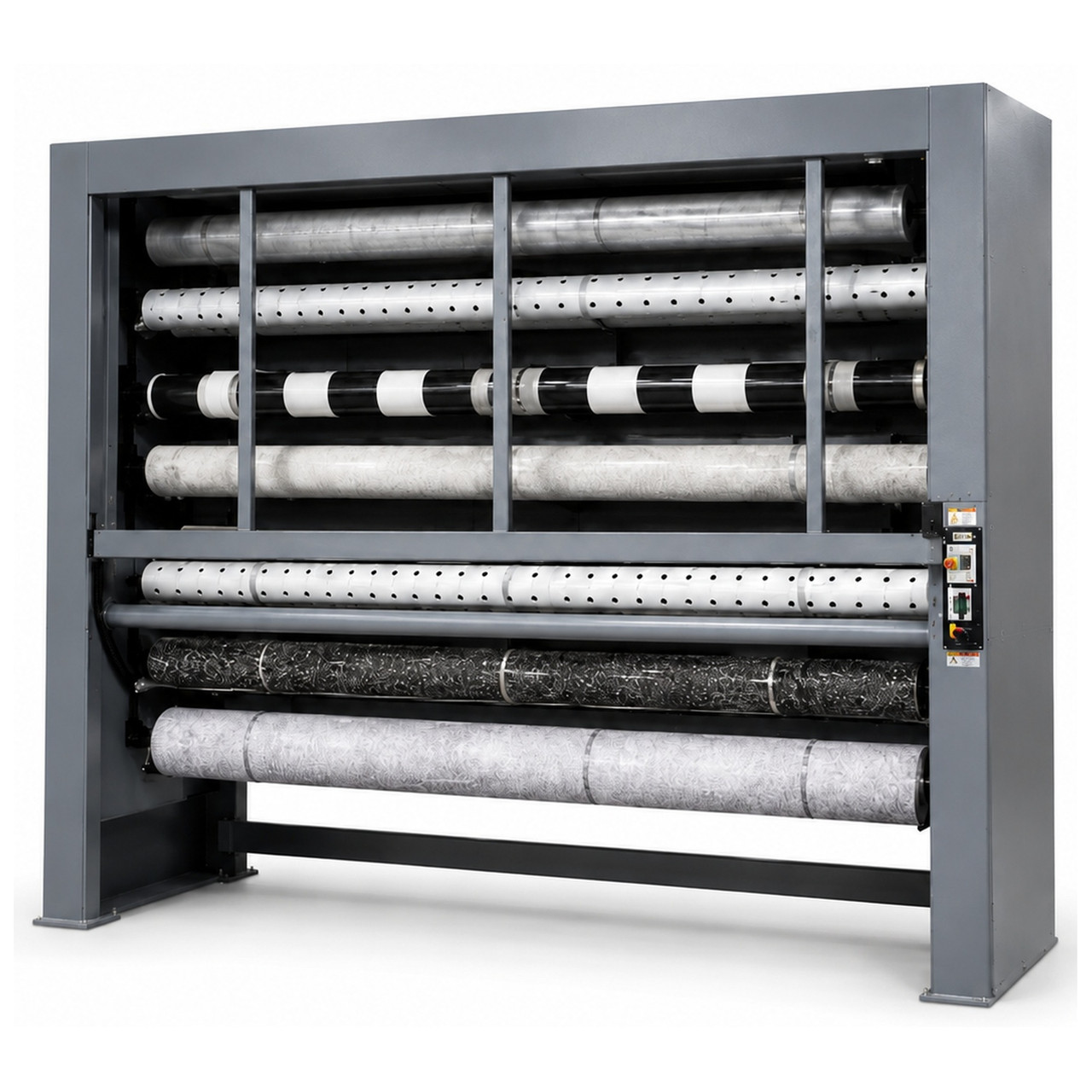

Vertical Roll Storage Carousel - 28 inch Max Roll Diameter - 6-Roll Capacity storage rack

Revit

SKU: SSC-RL-109-14-6

Vertical Roll Storage Carousel - 28" Max Roll Diameter - 168" W x 79" D x 109" H - 6-Roll Capacity

Name: Vertical Roll Storage Carousel - 28" Max Roll Diameter - 168" W x 79" D x 109" H - 6-Roll Capacity
SKU: SSC-RL-109-14-6
Price: 29241.38 USD
Availability: InStock

★★★★★ 4.9 Google Reviews

Product Description

Price

$29,241.38

QTY

BBB Accredited Business: A+ | Secure Checkout

Enter a Zip

Questions? We're here to help. Call 866-285-8646 or email us.

Overview

Product Description

Specifications

Spec Table

Warranty	5-Year Manufacturers Limited Warranty
Color/Finish	Durable powder-coated finish; final color confirmed with quote
Product Type	Motorized Vertical Roll Storage Carousel
Applications	Carpet and flooring; vinyl and textiles; paper and film; printing and converting; manufacturing; warehousing and distribution; retail roll-material dispensing
Available Options	Carrier poles from 4 to 15 ft.; heavy-duty roll capacity up to 1,500 lb under certain conditions; alternate carousel sizes; application-specific measuring and cutting setup
Available Pole Lengths	4 to 15 ft.; 12 ft. usable length is standard for this model
Controls	Simple motorized up/down controls
Electrical Requirements	Confirm voltage and power requirements with approved project quote
Heavy-Duty Roll Capacity	Up to 1,500 lb per carrier under certain conditions; confirm the configured application
Maximum Gross Load	Up to 16,000 lb including carrier poles, hardware, and stored product; heavy-duty configuration required
Maximum Out-of-Balance Load	2,000 lb
Maximum Roll Diameter	28" OD
Measuring and Cutting	Material can be measured and cut directly from the carousel
Number of Roll Carriers	6
Overall Width	168" (14')
Required Clear Height	121" (10' 1")
Required Overhead Clearance	12" above carousel height
Roll Capacity	6 rolls up to 28" OD

Dimensions & Weight

Width	168 inches
Height	10991 inches
Depth	7967 inches
Weight	10500 lbs
