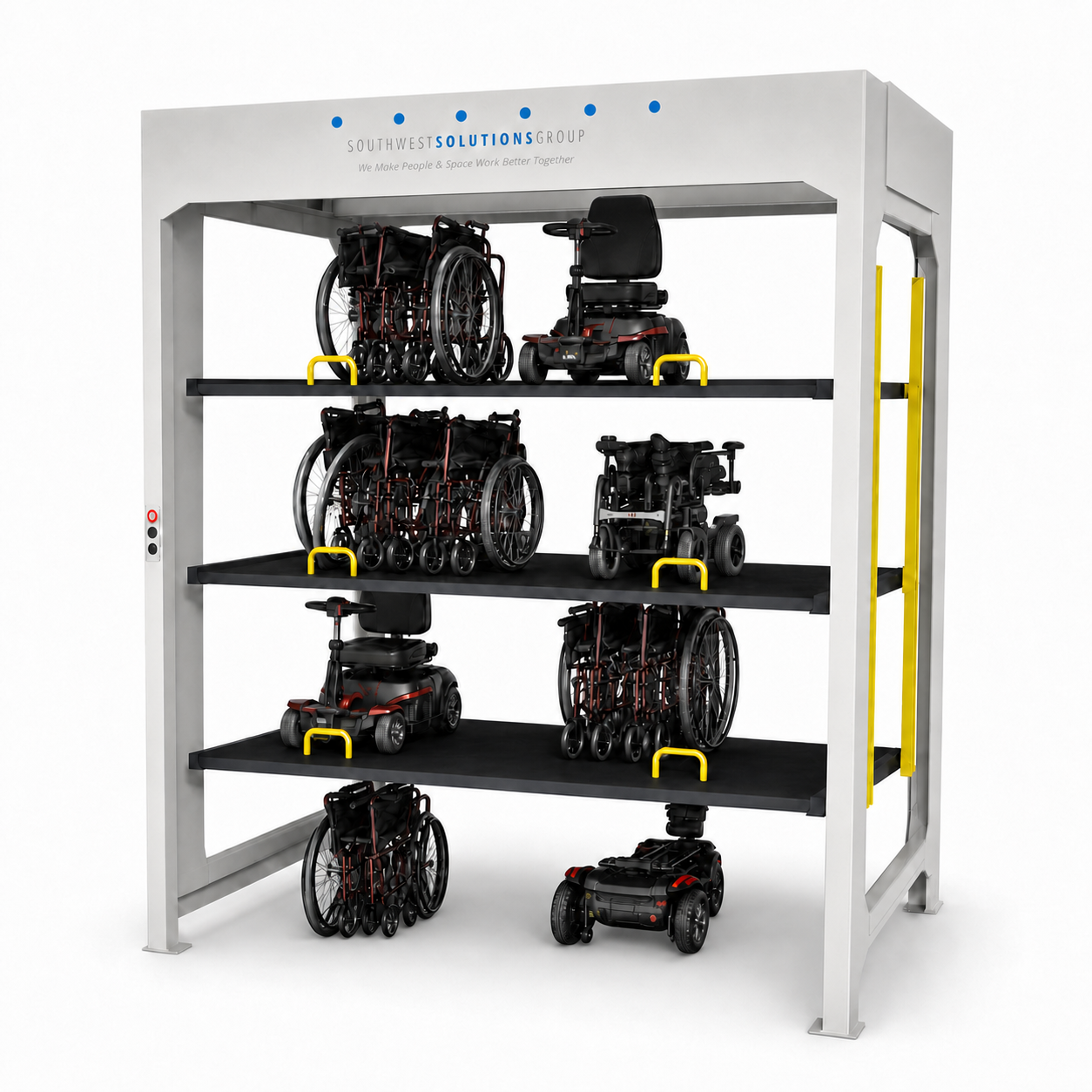

This four-level front-load vertical lift storage stacker is designed for healthcare, rehabilitation, long-term care, equipment-rental, and mobility-service facilities that need a safer, more organized way to store wheelchairs, electric scooters, and mobility scooters. By using available room height instead of spreading equipment across the floor, the system keeps mobility equipment organized, accessible, and out of hallways, staging areas, and valuable floor space. Equipment rolls straight onto the platform from the front, making the stacker practical for facilities with limited aisle or side clearance. Price includes equipment only; please request a quote or call for freight, professional installation, site review, and setup.

Available on Vizient, Premier, HealthTrust (HPG), Equalis, and other Purchasing Contracts.

This configuration provides 4 vertical storage levels with a 41-inch clear opening per level. Each 96.5-inch-wide x 47-inch-deep platform supports up to 1,000 pounds. Storage levels adjust in 3-inch increments. The complete lift measures approximately 105 inches wide x 55 inches deep x 184 inches high and operates on 220V, single-phase, 10 Amp power.

The Universal Stacker is a convertible storage platform that can be adapted as facility needs change. The front-load arrangement can be modified in the field for side loading, and available side panels, wheel chocks, and a seismic package allow the final project to be configured for the site. Available wheel chocks and loading-ramp configurations are selected during project review. Built-in safety systems include dual floor safety sensors, a safety light curtain, and a keyed lockout emergency stop. Green and red color-coded controls provide clear operating guidance. UL-certified electronics, an antimicrobial powder-coated finish, and U.S.-based manufacturing support durable daily use.

Installation and freight are quoted separately. The stacker ships unassembled and is custom configured and professionally installed by Southwest Solutions Group to support proper operation and site safety. Installation is typically completed in one day per lift, subject to site conditions, electrical readiness, unloading access, and the approved project configuration.

Key Features:

Mobility Equipment Vertical Storage: Stores wheelchairs, electric scooters, and mobility scooters vertically in one dedicated equipment-storage system.
Front-Load Vertical Storage: Wheeled equipment loads straight onto each platform from the front.
Field-Convertible Loading: The lift can be modified in the field for front or side loading as space and workflow needs change.
Four Storage Levels: Provides 4 vertical levels in a compact footprint.
41-Inch Clear Opening: Each level provides 41 inches of clear vertical space for the approved equipment configuration.
1,000 lb Platform Capacity: Each platform supports up to 1,000 pounds.
Full-Size Storage Platforms: Each platform measures 96.5 inches wide x 47 inches deep.
Adjustable Configuration: Storage levels adjust in 3-inch increments.
Loading Support: Available wheel chocks and loading-ramp configurations are selected for the approved equipment.
Built-In Safety Systems: Includes dual floor safety sensors, a safety light curtain, and a keyed lockout emergency stop.
Color-Coded Lift Controls: Green and red controls provide clear visual guidance during operation.
220V Electrical Requirement: Operates on 220V, single-phase, 10 Amp power.
UL-Certified Electronics: Certified electrical components support reliable operation.
Antimicrobial Powder-Coated Finish: Durable finish supports cleanliness in healthcare and institutional environments.
Project Options: Available side panels, wheel chocks, roll-down door, and seismic package are selected during quoting.
U.S.-Based Manufacturing: Built in the USA for long-term commercial and institutional use.
Professional Installation: Typically installed in one day per lift when the site is ready.
Color: Gray

This four-level Universal Stacker provides a high-capacity vertical storage solution for mobility equipment, helping facilities recover floor space, improve equipment organization, and keep frequently used rolling equipment accessible.

Southwest Solutions Group provides quotes, product guidance, and complete project support for this product. We can help you select the right model for your application and assist with planning, layout, shipping, installation, setup, and implementation. To request pricing or speak with a storage specialist, call 1-866-285-8646, email [email protected], or visit our Contact Us page.

SKU: SMS-889-V01-SSG-UL6F-SPL-4WC-NO

4-Level Vertical Lift Storage Stacker for Wheelchairs & Mobility Scooters

Name: 4-Level Vertical Lift Storage Stacker for Wheelchairs & Mobility Scooters
SKU: SMS-889-V01-SSG-UL6F-SPL-4WC-NO
Price: 41000 USD
Availability: InStock

★★★★★ 4.9 Google Reviews

Product Description

Price

$41,000.00

QTY

BBB Accredited Business: A+ | Secure Checkout

Enter a Zip

Questions? We're here to help. Call 866-285-8646 or email us.

Overview

Product Description

Specifications

Spec Table

Warranty	Manufacturer's Limited Warranty
Product Weight	6200 lbs
Material	Powder Coated Steel
Adjustment	3-inch increments
Application	Wheelchairs / electric & mobility scooters
Capacity per Level	1000 lb
Level Clearance	41 in
Levels	4
Load-Side Depth	55 in
Load-Side Width	105 in
Overall Height	184 in
Platform Depth	47 in
Platform Width	96.5 in
Power Requirements	220V, 1PH, 10 Amp
Electrical Specification	220V, 1PH, 10 Amp

Dimensions & Weight

Width	105 inches
Height	184 inches
Depth	55 inches
Weight	6200 lbs

Documents

Brochure

SpecSheet

Project Planning Guide
